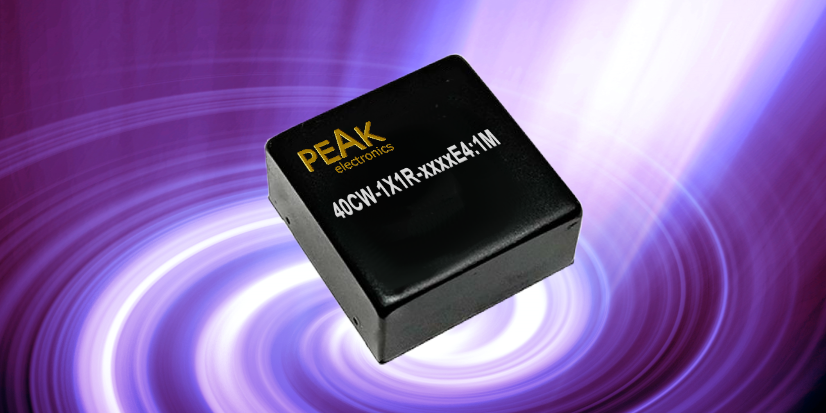

40CW-1X1R-xxxxE4:1M – New 40W DC/DC converter for the 1×1″ model series

PEAK electronics presents the new 40-watt power supply 40CW-1X1R-xxxxE4:1M. This compact, regulated power supply in a 1×1-inch form factor features 1.6 kV insulation and a single output. Equipped with TRIM and REMOTE CONTROL, overload protection, as well as under- and overvoltage protection, the 40CW-1X1R-xxxxE4:1M achieves an efficiency of up to 90%.

The extended 4:1 input voltage range allows for the use of 9–36 VDC or 18–75 VDC as the supply voltage. In addition to continuous short-circuit protection, its operating temperature range is -40° to +105°C.

It is available as a standalone converter or with a heatsink or DIN-rail chassis. This expands a 40-watt variant to our existing portfolio of 10W, 15W, 20W, and 30W models.

If you have any questions, please contact our team!
