2 Watt 4:1 regulated DC/DC-Converter in SMD design

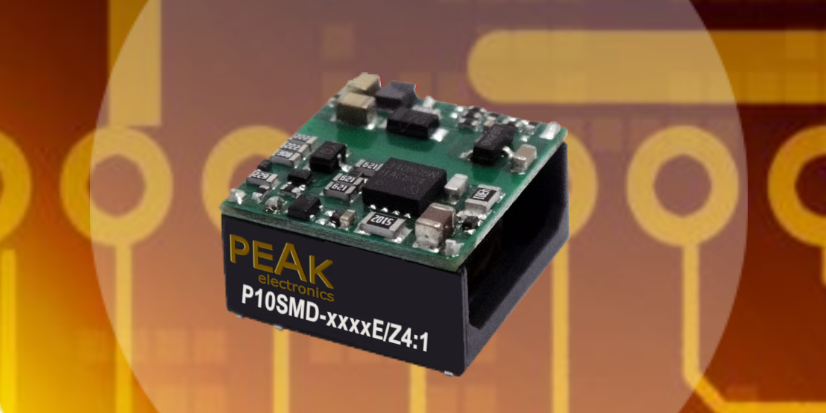

The new PEAK P10SMD version in a compact 12PIN SMD plastic package with dimensions of 14.65×14.40 (0.58 “x0.56″), a height of 8.95mm (0.35”) and a weight of 2 g allows high performance in a small space.

The regulated 2-Watt 4:1 DC/DC converters are available with single (P10SMD-xxxxE4:1) or dual (P10SMD-xxxxZ4:1) output in either tube or reel packaging. With the 4:1 input voltage range, 12Vdc (4.5-18Vdc) and 24Vdc (9-36Vdc) inputs are available. Output voltages available are 5Vdc, 12Vdc, 15Vdc, +/-12Vdc and +/-15Vdc.

The P10SMD version has a remote ON/OFF function, as well as a short-circuit-proof output and a temperature range from -40°C to 75°C. The converter is designed to comply with EN/IEC 62368-1 and EN/IEC/UL-60950-1.

Download Datasheet Single Output: P10SMD-xxxxE4:1
Download Datasheet Dual Output: P10SMD-xxxxZ4:1

If you have any further questions or special requirements, please do not hesitate to contact our team.
